How energy modeling can save your project millions

Buying a house is often the most expensive purchase of our lives. A home inspection can help prospective homebuyers make a more informed decision and potentially save thousands of dollars in maintenance, repairs, and other unwanted costs. Despite these benefits, some choose to forgo this valuable process to save a small expense.

Not having a building energy model for the design of a manufacturing facility is like this. In our experience, only a small fraction of project owners (10–20%) take advantage of energy modeling when designing a new building or assessing an existing building due to the added upfront cost. Thus, most are missing the opportunity to model for energy efficiency as a way to reduce energy consumption and, thus, operating expenses.

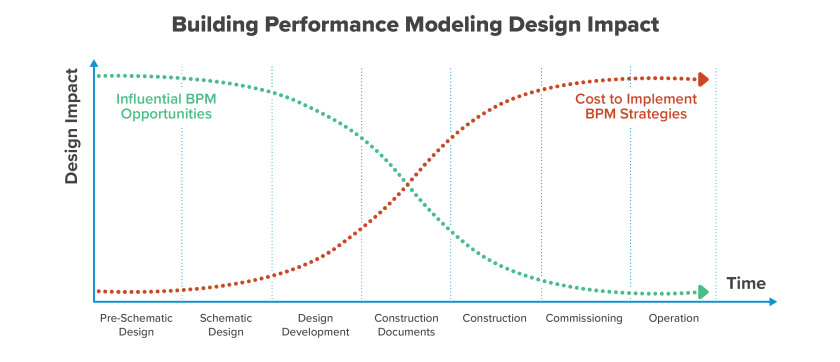

Making decisions at the outset of your projects about energy use—without the information that energy modeling can provide—will have lasting repercussions, at times amounting to millions of dollars in unnecessary utility costs. Given that energy modeling is inexpensive and ensures you make the wisest long-term decisions, we recommend performing energy modeling as early in the design phase as possible.

What is building energy modeling?

Energy modeling is used during the design of a manufacturing facility to quantify and optimize energy use of the building, process equipment, and supporting mechanical systems. In addition to energy consumption, these models include estimates of peak fuel demands, carbon emissions, water use, and renewable energy. Building energy modeling can identify the most efficient path, significantly reduce both capital and operating costs, and address the sustainability challenges that highly-regulated manufacturing facilities face.

How is building energy modeling applied?

The type of building dictates how energy modeling is applied. For a commercial building, such as a corporate headquarters, the building envelope heavily impacts energy expenditures, and internal heat gains are low. For these reasons, energy modeling in the commercial sector tends to focus on architecture. Glazing and the use of renewables are important, and commercial projects are more likely to aim for LEED certification, which often triggers the need for a building energy model.

Building energy modeling for pharma manufacturing facilities and their inherent processes is different. The building envelope—often a box with limited windows (e.g., a cleanroom)—is less important in terms of energy use intensity (EUI). Instead, mechanical systems needed for process technology take on far greater importance. This is why we tend to focus on mechanical energy modeling because there is significantly more CapEx and OpEx involved. In addition to space heating and air change rates, there is also steam used for sterilization and to distill water for injection (WFI), both reliant on mechanical boilers and using considerable energy. These processes also generate heat and humidity, both of which must be removed from the building.

How can energy modeling reduce costs?

Estimating cost savings and payback time of an energy model

For energy modeling to be attractive, the costs of commissioning an energy model should be recovered within three years through reduced capital expenditures or energy savings. In fact, by comparing the costs of energy modeling with predicted energy savings, the typical payback takes less than two months for commercial buildings. Of course, every project is unique and these numbers won’t necessarily apply to a pharmaceutical manufacturing plant.

How building energy modeling supports sustainability goals

Another reason to include an energy model is to achieve corporate sustainability goals. Sustainable energy solutions continue to gain popularity and most companies have decarbonization design standards that require alternatives to natural gas boilers and reduce unnecessary steam heat. We are often challenged to provide the lowest-cost option that meets user requirements or corporate sustainability goals. This creates a conflict between the total cost of ownership and the lifecycle cost, which is both CapEx and OpEx over the long term.

One of the challenges with decarbonization alternatives is that they can cost more. But when we use an energy model, and right-size the systems, we find that even 10% energy savings can translate to significant cost savings for a large manufacturing facility.

Corporate sustainability commitments could also include net zero carbon, meeting an EUI target based on a code mandate or standard. Energy models predict carbon consumption and provide the data needed to make decisions about, for example, the number of PV panels needed to offset carbon use.

Many companies are also committing to reducing water use. Water is an increasingly valuable commodity, one for which the tradeoff of consuming more energy to save water may be worthwhile, especially when clean energy alternatives are readily available.

Building energy modeling for LEED-certified projects

Although LEED certification weighs heavily on energy consumption—and whether green energy is being sourced—it also takes into account many other aspects, such as location, water, and the wellness of building occupants. By focusing, for example, on glazing, views to the outside, and indoor air quality, energy use might actually increase. Running energy models alongside your LEED scoring pursuits allows you to identify these inconsistencies in goals early on.

How does energy modeling work? And how are potential energy cost savings calculated?

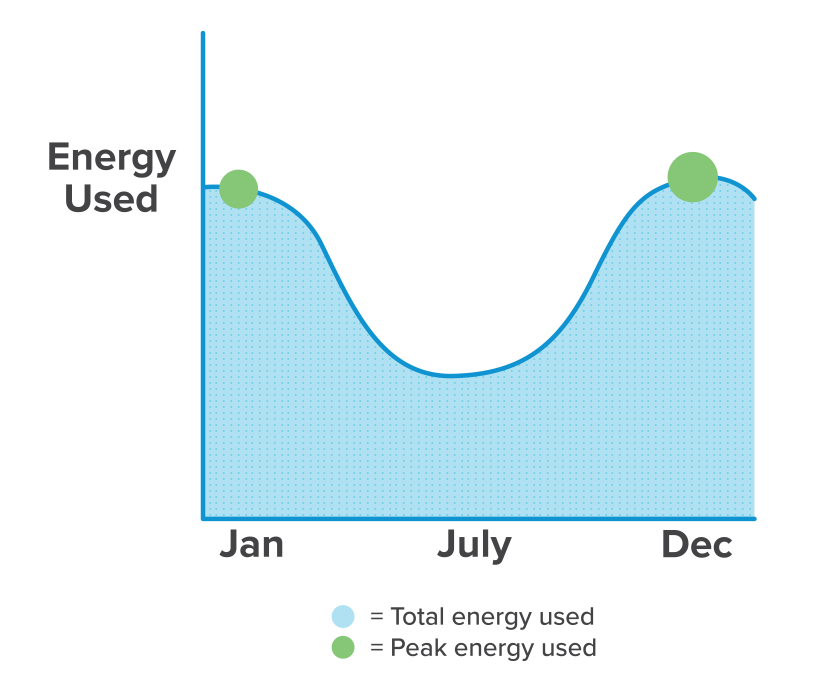

Energy modelers apply different thinking and methodology to calculate energy use than mechanical engineers. Using an 8760 energy model, an energy modeler strives to find the equipment sweet spot. An 8760 model refers to the number of hours in one year, and it simulates energy use for each hour throughout the year—sometimes as often as every five minutes—to prove a more accurate assessment of what is needed most of the time.

Using this detailed data, the energy modeler right-sizes the equipment to meet code energy use specifications or LEED requirements. Usually, this results in downsizing the mechanical engineer’s recommended equipment, while ensuring the equipment works within the necessary range of energy loads. Additionally, a mechanical engineer assumes there are no internal heat gains in winter loads, such as employees, lights, and computers. An energy modeler takes into account more realistic schedules of operation.

Combining the expertise of mechanical engineers with that of energy modelers can immediately reduce capital costs prior to construction by right-sizing expensive equipment, such as boilers, chillers, and HVAC systems. And, for equipment like heat recovery chillers (HRCs), downsizing actually allows them to operate more efficiently. In some cases, these cost savings may not be obvious to a client, as it’s part of our internal process of optimizing energy use.

Iterative and collaborative energy modeling

Depending on the scope of desired energy modeling, our process can extend through three steps of design and contain different degrees of detail. These types of building energy modeling include:

Schematic design

This first step is a quick way to represent the space. These are simple energy models—approximations used to make quick decisions—and include a list of proposed equipment. A schematic design doesn’t include all the rooms within each space as these may change over time.

It’s easiest to make changes at this stage before equipment has been purchased. We can anticipate expected LEED points and identify challenges.

Detailed design

Typically, the building’s site orientation is set by this phase while we make a more accurate and detailed model. We may continue to run studies to assess minor equipment choices and iterate to consider options. For example, we might be assessing two different chiller manufacturers based on the efficiency of their equipment.

Code compliance or LEED submission design

This is a fully detailed energy model, with everything documented and consistent with the design drawings. Energy models are necessary to meet the city code requirements on a performance path (e.g., IECC), though they are not needed for a prescriptive path. Other models are submitted to USGBC to determine LEED certification. Some models are used for both.

How to get the most out of your energy model

Energy modeling gives you confidence in your building’s design and your capital investment

While it’s true you may not need a building energy model to design and build your facility, it’s also true that this exercise often pays for itself—and quickly. But designing an energy-efficient facility, one with right-sized and optimized mechanical systems, requires experienced energy modelers.

Our building energy models have helped our clients to save millions of dollars in their facilities; for detailed examples of how we’ve significantly reduced costs with energy modeling, download our case studies here.

• Case study 1: Local utility rates affect site selection by $80 million
• Case study 2: Reducing air change rates from 40 ACH to 12 ACH
• Case study 3: Heat recovery chillers are almost always a good choice

Want to learn how energy modeling can reduce the capital and energy costs on your next building project? Contact our team.
